Raytron Technical Review RESEARCH ARTICLE WP-01-07

Drawing Technology: Precision Forming of Bimetallic Conductors

Gao-Lei Xu¹ *

¹RAYTRON Group Technology Research Center, China

^*Corresponding author

Received: 2025-12 Accepted: 2026-02 Published: 03/2026

DOI: 10.1234/raytron.2026.WP-01-07

Abstract

Wire drawing is the critical forming process for bimetallic conductors, determining final dimensions, surface quality, and mechanical properties. This technical analysis examines die design, lubrication, reduction schedules, and defect prevention for CCA, CCS, and NCC drawing.

Key Findings

Bimetallic Deformation Requires Coordination During drawing, core and cladding must deform coordinately. Due to different yield strengths and work hardening behaviors of the two metals, pass design optimization is needed to ensure uniform deformation and avoid interface stress concentration.
Die Design Affects Quality Die angle, bearing length, and surface finish directly affect drawing force and product quality. Optimal die angle is typically 12-18°. Carbide die life is 50-100km, diamond die life can reach 100-200km.
Lubrication is Key Factor Good lubrication reduces drawing force, decreases die wear, and improves surface quality. Oil-based lubricants are suitable for CCA, water-based for CCS (good cooling), and dry lubricants for NCC.
Work Hardening Needs Control Work hardening occurs during drawing, increasing strength but decreasing ductility. Intermediate annealing is needed to restore ductility, with temperature and time determined by material type and degree of work hardening.

Keywords

wire drawing;die design;bimetallic forming;lubrication;reduction schedule

1. Introduction

Drawing Clad Welding Dimensions KeyProcessstep 。

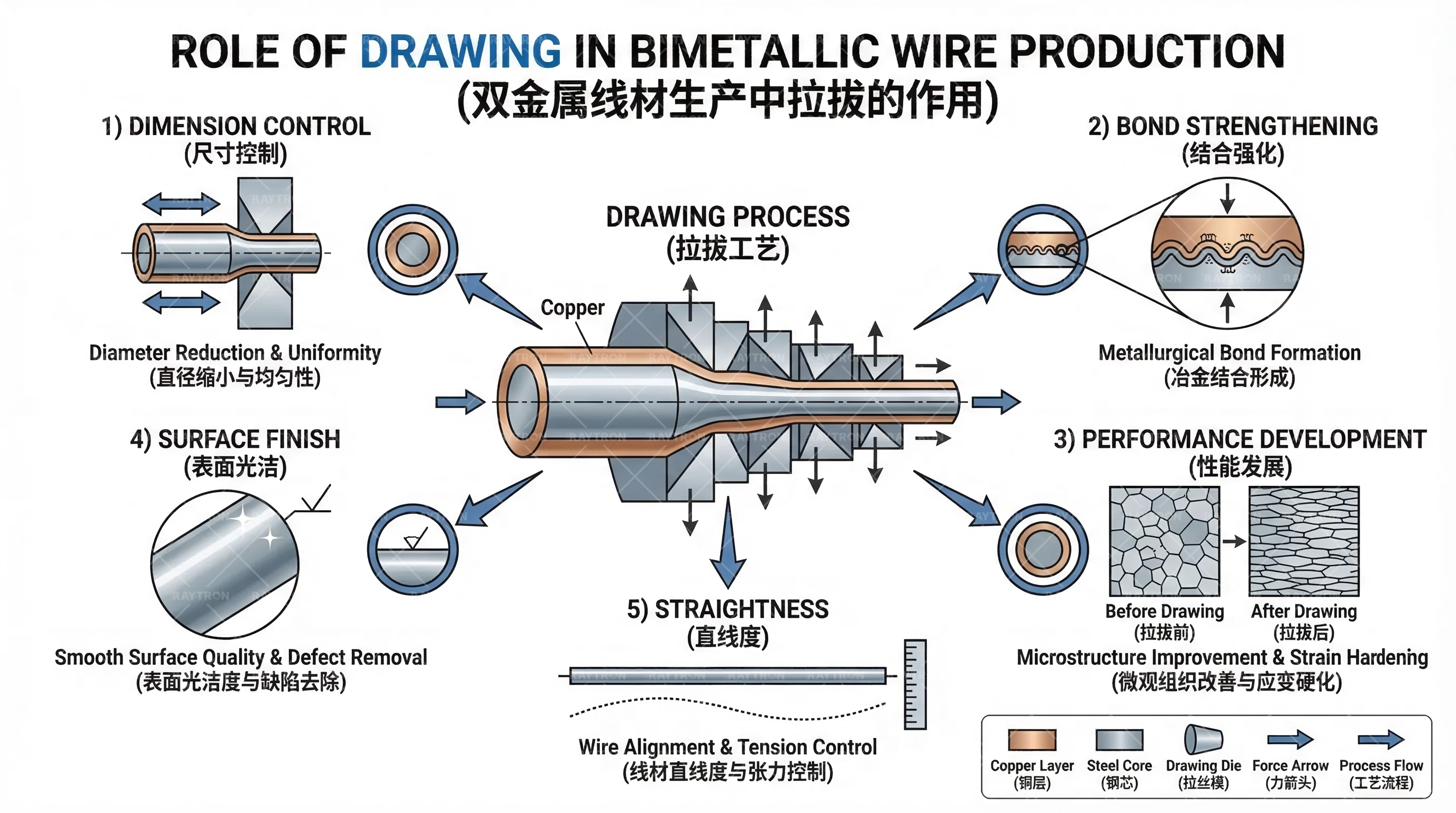

**Fig. 1** Drawing Process Schematic Diagram

2. DrawingFundamentals

2.1 Bimetallic Deformation Coordination

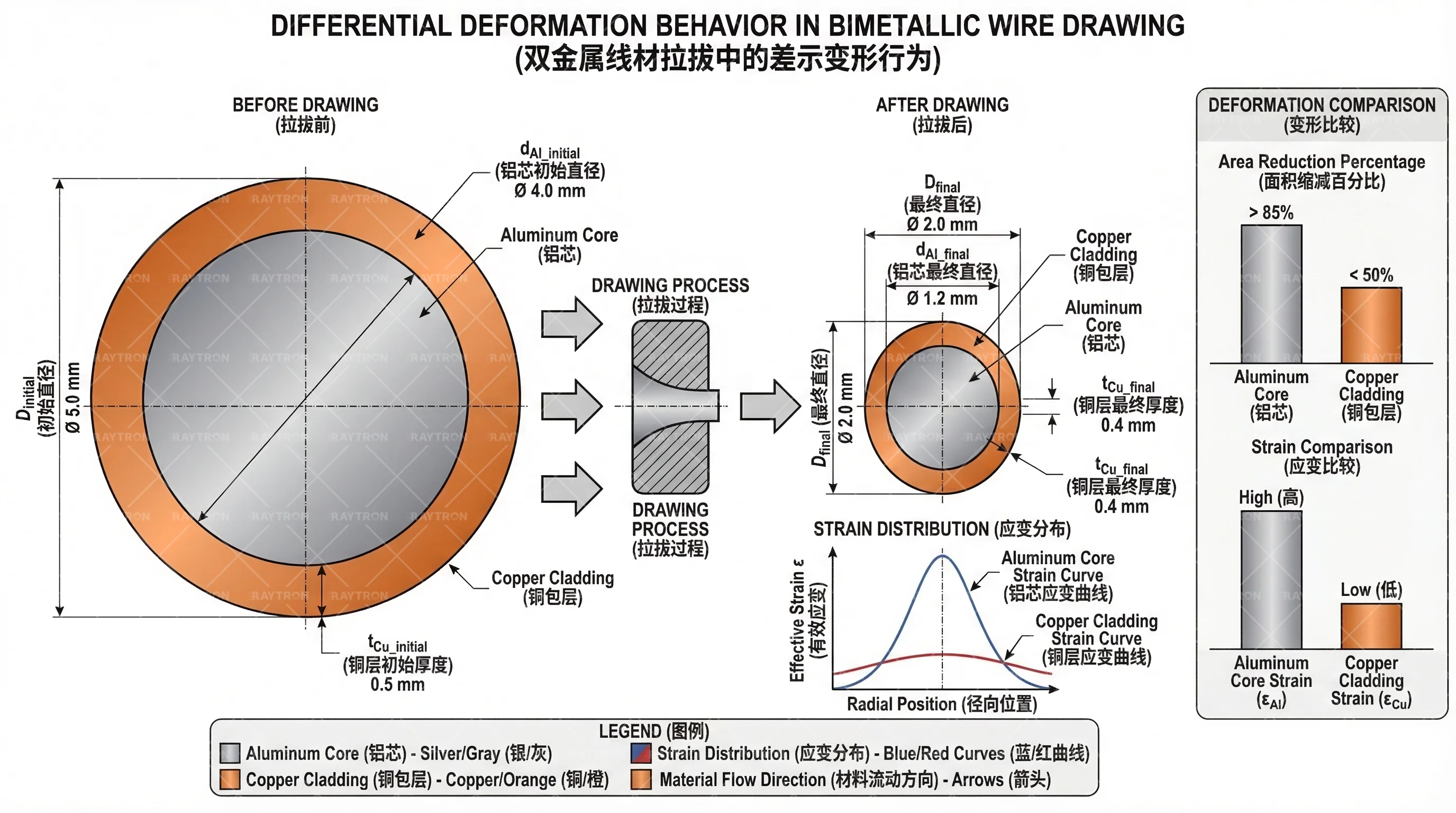

**Fig. 2** Bimetallic Deformation Coordination Diagram

ε_core ≈ ε_clad = ln(A₀/A₁)

(1)

3. Design

Pass DesignWarrantyProductsquality Key。

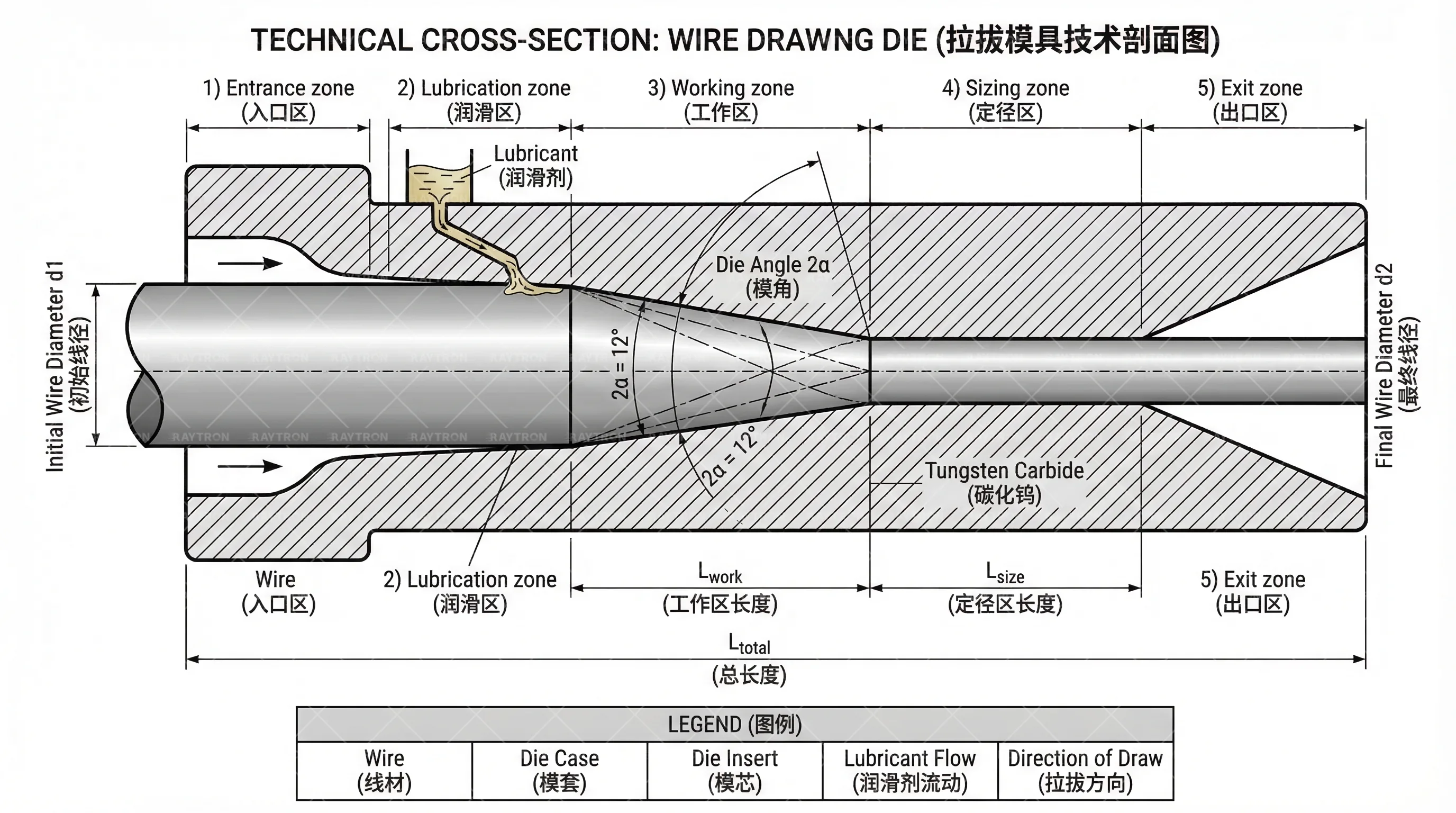

4. Die Technology

**Fig. 3** Effect of Die Angle on Drawing Force

5. 6. Quality Control

7. Conclusion

Frequently Asked Questions

How does bimetallic drawing differ from single-metal drawing?

Bimetallic drawing requires consideration of deformation coordination between two metals. Due to different yield strengths of core and cladding, deformation may be uneven. Pass design and die parameters need optimization to ensure interface stress does not exceed bond strength and avoid delamination.

How to choose drawing die material?

Carbide dies are suitable for CCA and CCS, moderate cost, life 50-100km; Diamond dies are suitable for fine wires and high-precision products, life 100-200km but higher cost; Ceramic dies are suitable for high-temperature applications. Choose based on product specifications and production requirements.

How to control residual stress during drawing?

Residual stress originates from uneven deformation. Control methods include: optimizing pass reduction rate (15-25%), using appropriate die angle, maintaining good lubrication, controlling drawing speed. Residual stress can be eliminated by annealing.

Figures

Create Drawing ProcessDiagram

Fig. 1 Drawing ProcessDiagram

Dual MetalDeformation CoordinationDiagram

Fig. 2 Dual MetalDeformation CoordinationDiagram

Create DieAngle on DrawingForce Impact Curve

Fig. 3 DieAngle on DrawingForce Impact

Create Processing Hardening Curve

Fig. 4 Processing Hardening Curve

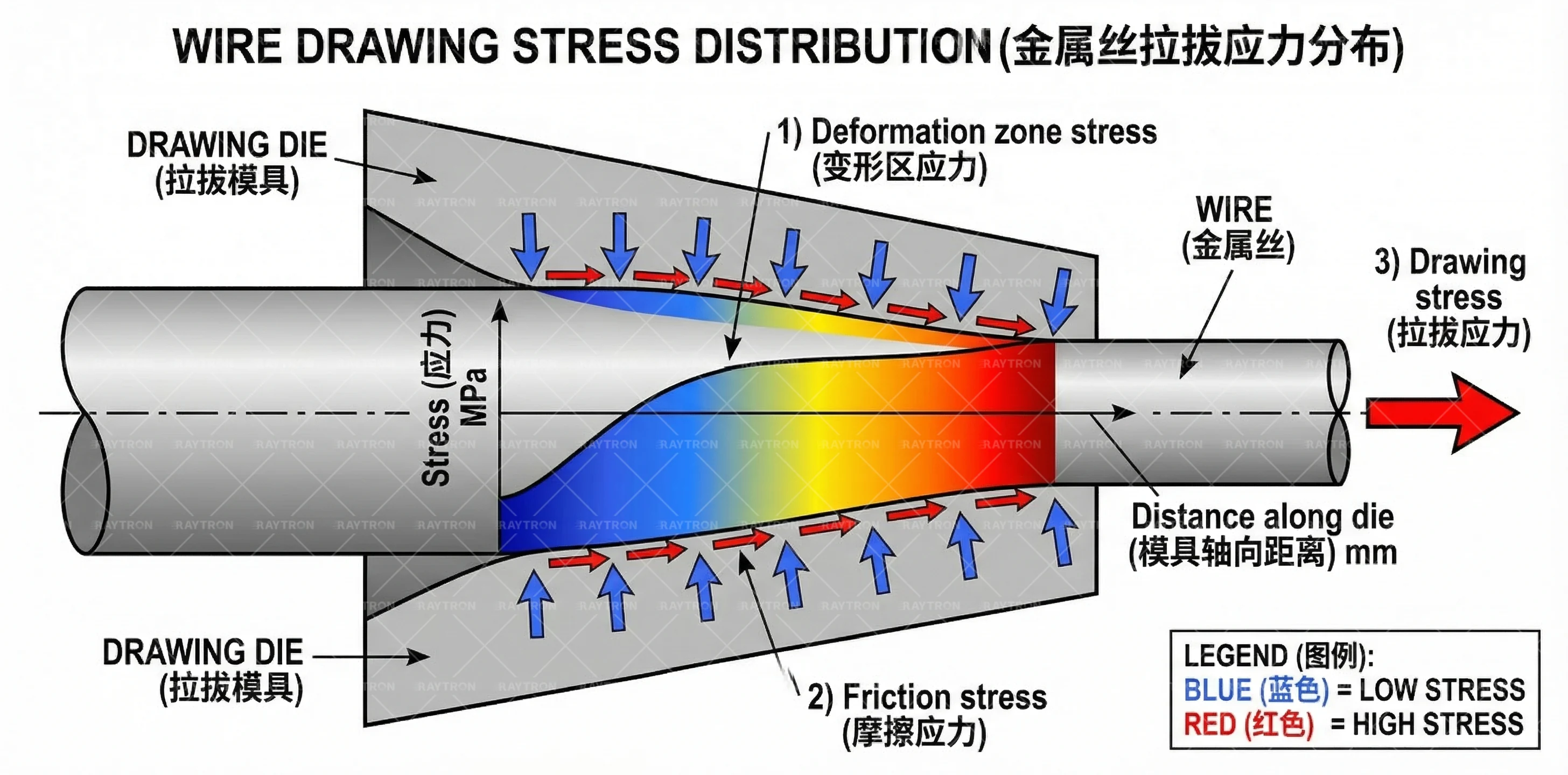

Create Residual Stress Distribution Diagram

Fig. 5 Residual Stress Distribution Diagram

Tables

Table 1 DrawingParameterScope

Parameter	CCA	CCS	NCC
PassReducedDiameterRate (%)	15-25	10-20	15-22
TotalReducedDiameterRate (%)	85-95	80-90	85-92
Drawing Speed (m/s)	1-5	0.5-3	1-4

Table 2 DieMaterialSelection

Die Type	ApplicableMaterial	Service Life (km)
HardQuality Alloy	CCA, CCS	50-100
Diamond	FineWire	100-200
High TemperatureApplications	30-50

Table 3 LubricantSelection

Lubricant Type	ApplicableMaterial	SpecialPoint
CCA	GoodLubrication
CCS	Cold EffectWell
Dry	NCC	CleaningProduction

References

Wistreich, J. G. The Fundamentals of Wire Drawing Metallurgical Reviews (1958)
ASM International Wire Drawing Handbook ASM (2019)
