Engineering application guide

Conductors for Motors and Magnetic-component Windings

Compare winding conductors within the space and temperature-rise limits of your motor. Include the conductor dimensions, insulation system, winding process and electrical target. A CCA trial should compare the finished winding with the copper baseline, including resistance, forming behavior and the amount of material required.

Review a Winding Drawing
On this page

Check the winding envelope

Bare metallic section → insulation build → finished conductor envelope → winding window. Use bare dimensions for the conductor calculation and the finished envelope for fit; inspect corners and insulation after the intended winding process.

Illustration of insulated conductors within an industrial motor winding slot.
Insulated conductors within an industrial motor winding slot. View full-size illustration

Motor windings and high-frequency magnetic components have different duty inputs. Use the inverter magnetic-component route for waveform and AC-loss review, and flat-wire design for corners, camber, twist and bend direction.

Compare within the winding space

Copper and CCA round or flat conductors must be compared at the required winding resistance and temperature rise. Equal width and thickness alone does not hold electrical performance constant. Include the material quantity and process yield when comparing cost.

Define bare conductor and insulation separately

Specify the metal dimensions and temper, then insulation type, build and finished dimensions. Conductor dimensions and insulation build together determine the finished winding envelope.

Record the trial winding

Record conductor dimensions, bend behavior, surface or coating damage, finished-coil resistance and temperature rise. Include the terminal joint and winding process in the trial. View Copper Flat Wire · View CCA Flat Wire

Choose the winding task

Scroll horizontally to read all columns. Keep the conditions and units with each value.

Component Conductor and design resources

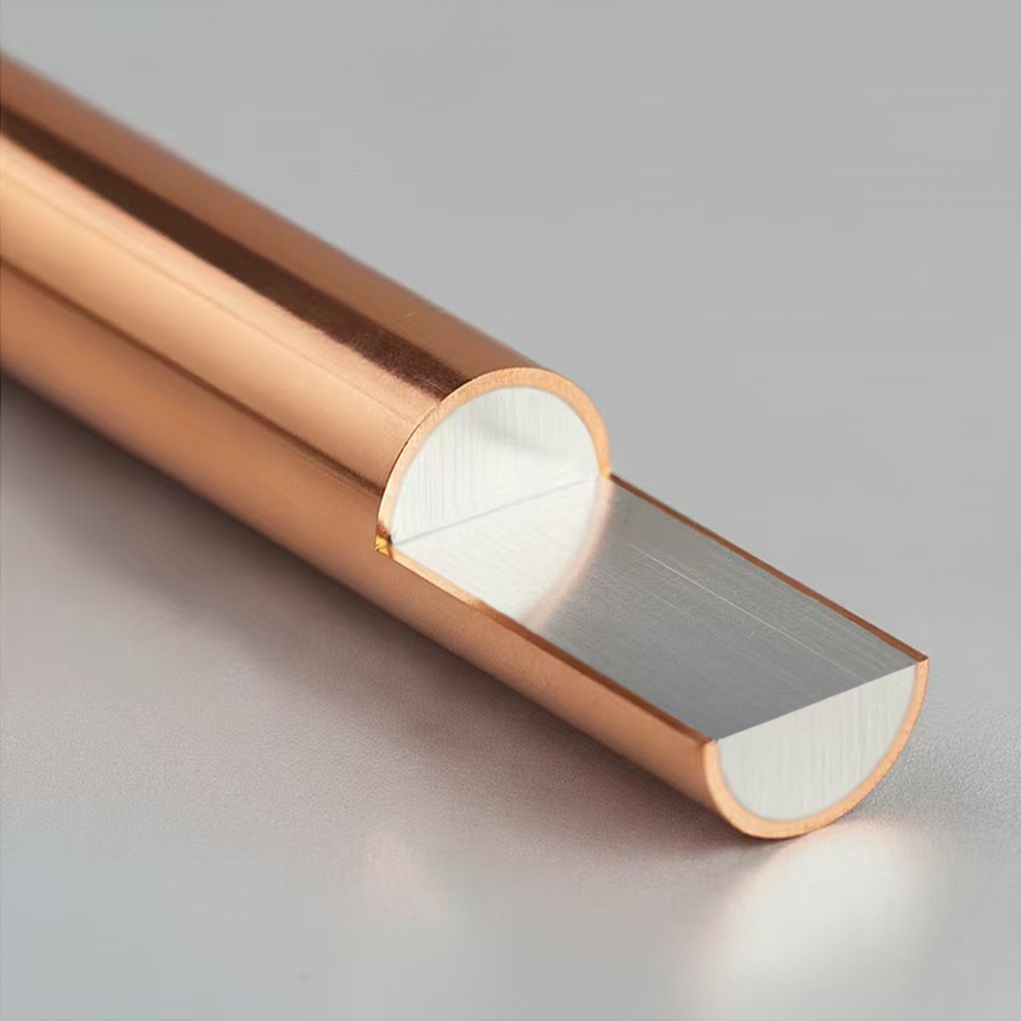

Motor or coil round conductor Copper round wire or CCA round wire; bare conductor specification review

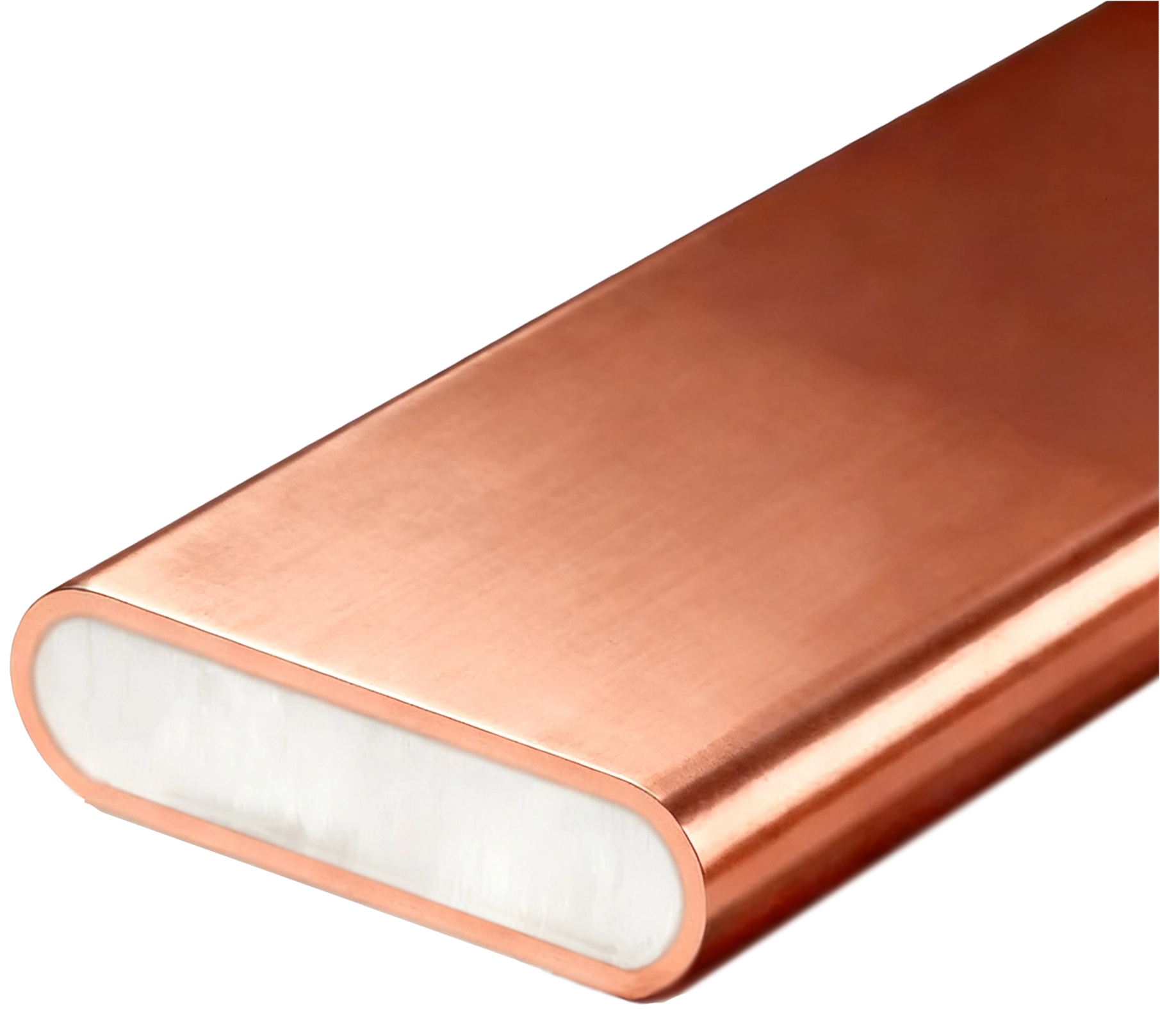

Flat winding Copper flat wire or CCA flat wire; bare and finished envelopes separate
Transformer foil Foil-winding loss record with frequency/waveform/temperature and geometry
Inductor / inverter magnetics Magnetic-component trial
Insulated construction Insulated conductor requirements; insulation system, build and finished dimensions
Conductors for Motors and Magnetic-component Windings
Application specification record — open worksheet

Record your project requirements and observations, then download or include them in an inquiry.

ItemInformation / unitsYour input
Winding identityMotor, transformer or inductor; drawing, turns, winding window and insulation envelope
Electrical and thermal dutyFrequency/waveform, RMS and peak current, target resistance and temperature/cooling
Conductor and trialRound / flat / foil, bare or insulated responsibility, dimensions, joints and sample records
